Scripts

A script is a piece of script code, which executes a required operation. Scripts can be called within a document. The script takes no input parameter and returns no explicit values.

Scripts in MetaTool are written in either JScript or VBScript scriptengine. You select which script language to use under File/Properties (see chapter 5 Properties). Apart from methods from MetaEngine (see below) you have JScripts/VB-Script´s own methods and functions and also ActiveX/COM components.

This makes the use of scripts very powerful; in principle you can build the whole document by using scripts. However, we do not recommend that because you then will lose the structure of the document and it will be more difficult to understand and maintain.

When working with a solution set up, it is possible to have two script languages available, but only ONE can be active in a project. When copying a script in a different script language from another project, the script will be empty but a Copy button will be available.

You can then copy the other language into the same name, but it has to be manually converted to the target language of the project.

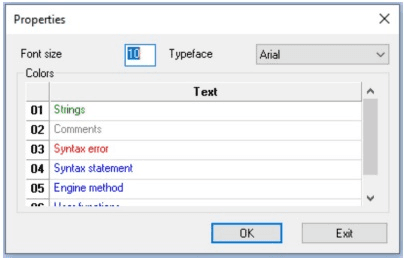

Click on Help in the script editor for a complete reference manual over both JScript and VB-Script. To see more script code examples you can visit sites like https://www.w3schools.com/js/

To debug your scripts see chapter Debugging.

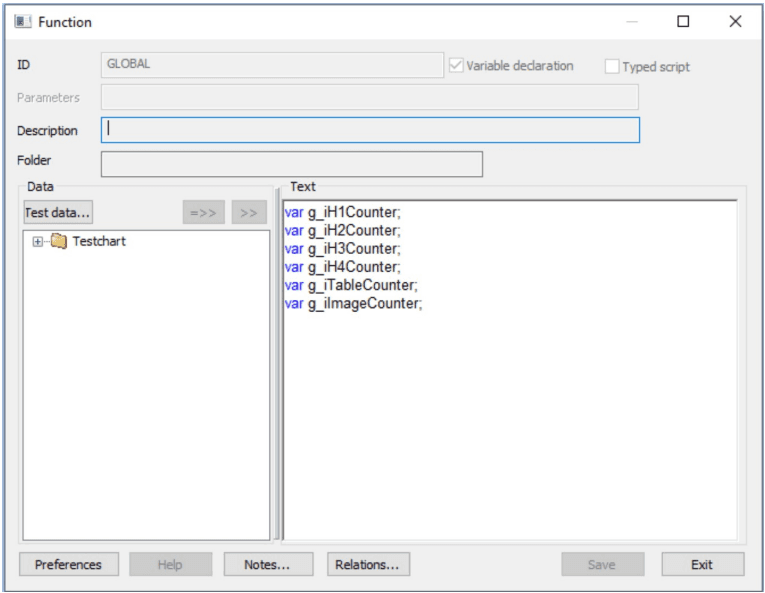

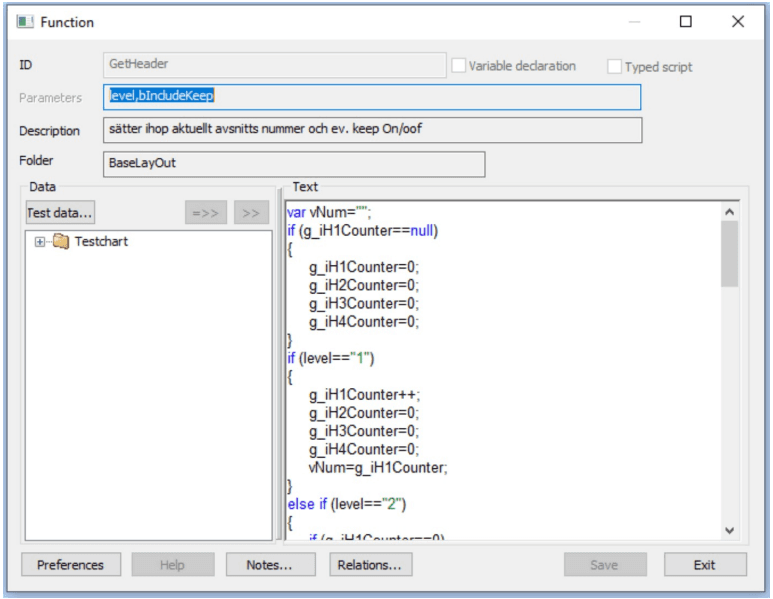

To add a script you either select Edit/Scripts… or right click in the scripts view. See chapter Generic list dialog.

Script editor context menu

A right click in the script editor and selecting Insert will produce a list of all available Metaforce methods. The syntax is adjusted to the selected script language. The result is a template of how the syntax of the selected methods looks like. It must, however, be adjusted to the needs of your own script.

Methods available from MetaEngine

Metaforce supplies a number of methods to help the document designer and they are used to communicate between ScriptEngine and the MetaEngine.

Method categories

Some of the methods can be part of more than one category but in this document we have put the methods where they are most commonly used.

Data methods

Additional prefix qualification character to the data methods that fetches data can be used. Below is the list of available qualification character that are available:

Without a qualification it works the same as in previous versions. In previous version the search went down the tree and if it could not be found below it then went up the tree to search for the field.

AttributeExists

AttributeExists(Attributename)

Returns a boolean value. The value will be true if the attribute name exists else it will return false. It does not check if it contains a value only that it exist or not.

EXAMPLES:

• JScript

  if (AttributeExists("OptionalAttribute") { // We have optional attribute
   InsertText("OptionalText");
  }

• VBScript

  if AttributeExists("OptionalAttribute") 0 then ' We have optional attribute
   InsertDocument "OptionalText"
  end if

CountNodes

CountNodes(Nodename)

Returns number of children for node name Nodename. If the Nodename does not exist a zero (0) value is returned.

EXAMPLES:

• JScript

  var vOneLevel = CountNodes("items");
  if (vOneLevel>0) // We have data node
   InsertDocument("DOCID");
  var vMultiLevel = CountNodes("Parents=Children");
  if (vMultiLevel>0) // We have Children items under Parents
   InsertText("TEXTID");

• VBScript

  Dim vOneLevel, vMultiLevel
  vOneLevel = CountNodes("items")
  if vOneLevel > 0 then ' We have data node
   InsertDocument "DOCID"
  end if
  vMultiLevel = CountNodes("Parents=Children")
  if vMultiLevel > 0 then ' We have Children items under Parents
   InsertText "TEXTID"
  end if

GetValue

GetValue(“DataName”)

Gets a value from data area. Returns a string. If specified variable name (DataName) does not exist an empty string is returned i.e string length equal to zero (0).

EXAMPLES:

• JScript

  var vRet="";
  var vValue = GetValue("CustomerName");
  if (vValue!="")
   vRet=vValue;

• VBScript

  Dim vRet, vValue
  vRet=""
  vValue = GetValue("CustomerName")
  if vValue <> "" then
   vRet=vValue
  end if

Special runtime values

In the specific case when generating documents that are loaded into the Dynamo (ondemand or batch, not Metawrite) two specific runtime values can be retained using GetValue:

• __Load_SheetCount
• __Load_PageCount

These attributes contains the current sheet and page count for the current document.

GetTypedValue

GetTypedValue(“Value”,“DataType”,“[Format]”)

Formats the value. Returns a string.

EXAMPLES:

• JScript

  var vRet="", vDate;
  vDate = GetTypedValue(GetValue("RelDate"), "SHORTDATE");
  if (vDate!="")
   vRet=vDate;

• VBScript

  Dim vRet, vValue
  vRet=""
  vValue = GetTypedValue(GetValue("RelDate"), "SHORTDATE")
  if vValue <> "" then
   vRet=vValue
  end if

Here is a list of formatting pictures that can be used and there meaning, any other character not in the list will be displayed as itself.

For CUSTNUMBER

ReturnValue

ReturnValue(“Value”)

Returns a value on which MetaEngine acts. What MetaEngine does depends on the type of script (Row,Text or Execute).

When the script is a row script, then ReturnValue must return a value from the list below. Any other value is ignored.

When the script is a Text script, it can then return any kind of string. If multiple ReturnValue exist in a script then last ReturnValue string is used. ReturnValue should not be confused with JScript’s return statement.

An execute script should not use the ReturnValue since MetaEngine cannot do anything with the value returned, any return value is ignored.

EXAMPLES:

• JScript

  // row script example
  var vRet="0";
  var vValue = GetValue("CustomerName");
  if (vValue!="")
   vRet="2"; // the row script returns Pre-selected (2)
  ReturnValue(vRet);
  // text script example
  var vRet="";
  var vText="This is a String to be placed in a text.";
  ReturnValue(vText);

• VBScript

  ' row script example
  Dim vRet, vValuevRet=""
  vValue=""
  if vValue <> "" then
   vRet="2" ' the row script returns Pre-selected (2)
  end if
  ReturnValue(vRet)
  ' text script example
  Dim vRet, vText
  vRet=""
  vText="This is a String to be placed in a text."
  ReturnValue vText

SetValue

SetValue(“VarName”, “VarValue”)

Inserts a specified variable name (VarName) and a value (VarValue) in data. If SetValue is used in a node, then the variable/value is added on that level. An error occurs if SetValue is used without a variable/value pair.

EXAMPLES:

• JScript

  var vName = "Smith, Bob";
  var aName = vName.split(","); // Make array and split at (,)
  SetValue("Firstname", aName[1]); // Create variable Firstname
  SetValue("Lastname", aName[0]); // Create variable Lastname

• VBScript

  dim vName, aName
  vName ="Smith, Bob"
  aName = SPLIT(vName,",") ' Make array and split at (,)
  SetValue "Firstname" , aName(1) ' Create variable Firstname
  SetValue "Lastname" , aName(0) ' Create variable Lastname

Specialised methods (found under Utilities)

This section describes three specialised methods that can be used to analyze the data loaded and to add additional data into the MetaEngine.

FindInData

FindInData(searchValue, searchAttribute, searchPath, searchType)

Returns a string if searchValue was found, it will be blank (empty) if not found. If the string contains multiple found records then it is separated with ”;” (semi-colon). The attribute (field) that contains the search is prefixed with an @ (at-sign).

Defines the wanted search.

searchType can be a constant value, return value from function or variable

EXAMPLES:

• JScript

  var vSearch = "10", // search for this value.
   vField = "qty", // search only this field
   vPath = "item[*]", // look in all item iterations
   vType = "LIKE_CI", // like case insensitive search
   vResult;
  vResult = FindInData(vSearch, vField, vPath, vType);
  // what is returned:
  // item[0]@qty;item[3]@qty;item[4]@qty

• VBScript

  DIM vSearch = "10" ' search for this value
  DIM vField = "qty" ' searh only this field
  DIM vPath = "item[*]" ' look in all item iterations
  DIM vType = "LIKE_CI" ' like case insenitive search
  DIM vResult
  vResult = FindInData(vSearch, vField, vPath, vType)
  ' what is returned:
  ' item[0]@qty;item[3]@qty;item[4]@qty

GetParmsNode

GetParmsNode()

Returns an XML structure of all parameters passed to MetaEngine. It can be used either in batch environment and online to find out name of input file and other interesting information. If used with PPA program it can be used to get parameters passed by the InjectParams step, see PPA documentation for more information

EXAMPLES:

• JScript

  var vList,
   vParms,
   vTest,
   vLen,
   vInjectParam,
   vInjectValue,
   vItem,
   i;
  vParms = GetParmsNode(); // Get MetaEngine
  if ( vParms.length>0 ) {
   if ( g.Xml === undefined ) {
   g.Xml = new ActiveXObject("Microsoft.XMLDOM");
   }
   if ( g.Xml.loadXML(vParms) ) {
   vTest = g.Xml.selectSingleNode(".//Data/@OutPutType");
   if ( vTest!==null ) {
   if ( vTest.nodeValue!==null ) {
   bTest = ("EMF" === vTest.nodeValue); // Running in MetaTool?
   }
   }
   vList = g.Xml.selectNodes(".//InjectParam"); // PPA InjectParam node(s)
   if ( vList.length>0 ) {
   vLen = vList.length;
   for ( i = 0; i<vLen; i++ ) {
   vItem = vList[i];
   if ( vItem!==null ) {
   vInjectParam = vItem.attributes.getNamedItem("Name").nodeValue;
   vInjectValue = vItem.attributes.getNamedItem("Value").nodeValue;
   SetValue(vInjectParam, vInjectValue);
   switch ( vInjectParam ) {
   case "INEVENTID":
   g.InEventID = vInjectValue;
   break;
   case "DBCONNECTION":
   g.DbConnection = vInjectValue;
   break;
   case "JOBTYPE":
   g.JobType = vInjectValue;
   break;
   }
   }
   }
   }
   }
  }

• VBScript

  Dim vList, vParms, vTest, vLen, vInjectParam, vInjectValue, vItem, i
  vParms = GetParmsNode() ' Get MetaEngine
  if LEN(vParms)>0 then
   gXml = new ActiveXObject("Microsoft.XMLDOM")
   if gXml.loadXML(vParms) then
   vTest = gXml.selectSingleNode(".//Data/@OutPutType")
   if vTest is not nothing then
   if vTest.nodeValue Is Not Nothing then
   bTest = ("EMF" == vTest.nodeValue) ' Running in MetaTool?
   end if
   end if
   vList = gXml.selectNodes(".//InjectParam") ' PPA InjectParam node(s)
   if LEN(vList)>0 then
   vLen = LEN(vList)
   for i = 0 to vLen
   vItem = vList(i)
   if vItem is not nothing then
   vInjectParam = vItem.attributes.getNamedItem("Name").nodeValue
   vInjectValue = vItem.attributes.getNamedItem("Value").nodeValue
   SetValue vInjectParam, vInjectValue
   select case vInjectParam
   case "INEVENTID"
   gInEventID = vInjectValue
   case "DBCONNECTION"
   gDbConnection = vInjectValue
   case "JOBTYPE"
   gJobType = vInjectValue
   end select
   end if
   end if
   end if
   end if
  end if


GetXmlData

GetXmlData()

Returns an XML structure of data loaded in MetaEngine. If no data exists a dummy structure is returned with the following value Data Dummy=""/.

EXAMPLES:

• JScript

  var vId;
  var vText = "";
  var vXML = "<?xml version='1.0' encoding='UTF-16?>";
  var xmlObj = new ActiveXObject("Microsoft.XMLDOM");
  vXML += GetXmlData();
  if (xmlObj.loadXML(vXML) ) // true if load OK
  {
   var evList = xmlObj.selectNodes(".//grafdata");
   for (var Node = evList.nextNode(); Node; Node=evList.nextNode() )
   {
   if (Node.attributes.length>0 )
   {
   vId = Node.attributes.getNamedItem("age").nodeValue;
   if (vText.lastIndexOf(vId)<1)
   {
   if (vText != "")
   vText += ", ";
   vText += vId;
   }
   }
   }
  }
  ReturnValue(vText);

• VBScript

  dim vText, vXML, vID
  vText=""
  vXML="<?xml version='1.0' encoding='UTF-16?>"
  Set xmlObj = CreateObject("Microsoft.XMLDOM")
  vXML = vXML & GetXmlData()
  if xmlObj.loadXML(vXML) then ' true if load OK
   Set evList = xmlObj.selectNodes(".//grafdata")
   Set vEvent = evList.nextNode()
   for each Node in evList
   if Node.attributes.length>0 then
   vId = Node.attributes.getNamedItem("age").nodeValue
   if InStr(vText,vId)<1 then
   if vText <> "" then vText = vText & ", "
   vText = vText & vId
   end if
   end if
   next
  end if
  ReturnValue vText

SetXmlData

SetXmlData(XMLString)

Append the created XML string at the end of current loaded data. This method does not replace the existing data it just appends the new XML string at the end of existed data.

EXAMPLES:

• JScript

  var XmlStruc = "<?xml version='1.0' encoding='UTF-16?>";
  XmlStruc += "<Data Name='"
  XmlStruc += "Donald Duck";
  XmlStruc += "' ";
  XmlStruc += "Address='";
  XmlStruc += "Duckburg"
  XmlStruc += "' ";
  XmlStruc += "/>";
  var xmlObj = new ActiveXObject("Microsoft.XMLDOM");
  if (xmlObj.loadXML(XmlStruc)) // true if load OK
   SetXmlData(XmlStruc);

• VBScript

  Dim XmlStruc
  XmlStruc = "<?xml version='1.0' encoding='UTF-16?>"
  XmlStruc = XmlStruc & "<Data Name='"
  XmlStruc = XmlStruc & "Donald Duck"
  XmlStruc = XmlStruc & "' "
  XmlStruc = XmlStruc & "Address='"
  XmlStruc = XmlStruc & "Duckburg"
  XmlStruc = XmlStruc & "' "
  XmlStruc = XmlStruc & "/>"
  Set xmlObj = CreateObject("Microsoft.XMLDOM")
  if xmlObj.loadXML(XmlStruc) then ' true if load OK
   SetXmlData(XmlStruc)
  end if

GetStringHeight

GetStringHeight(styleName)

Returns a float that contains the style’s height in mm.

EXAMPLES:

• JScript

  var vHeight = GetStringHeight("[_Format H5_]");
  // vHeight = 5.2740278244018555

• VBScript

  DIM vHeight
  vHeight = GetStringHeight("[_Format H5_]")
  ' vHeight = 5.2740278244018555

GetStringWidth

GetStringWidth(styleName, stringValue)

Returns a float that contains the width of the stringValue using the styleName in mm.

EXAMPLES:

• JScript

  var vWidth = GetStringWidth("[_Format H5_]", "TEXT");
  // vWidth= 10.103202819824218

• VBScript

  DIM vWidth
  vWidth= GetStringWidth("[_Format H5_]", "TEXT")
  ' vWidth= 10.103202819824218

Archive- and pageindex method

AddIndex

AddIndex(“IndexType”, “IndexName”, “IndexValue”)

Add index in document. The index type can be a document-, a page- or a document archive index. See below for additional information.

EXAMPLES:

• JScript

  AddIndex("1", "Invoiceno", "123456"); // Document index (AFPDS)
  AddIndex("2", "Invoiceno", "123456"); // Page index (AFPDS, PDF)
  AddIndex("3", "Invoiceno", "123456"); // Metaforce Dynamo archive index
  AddIndex("4", "Invoiceno", -1); // Metaforce Dynamo data archive index
  AddIndex("4", -1, -1); // Metaforce Dynamo data archive index
  AddIndex("4", 'Namn', 'Item'); // Metaforce Dynamo data archive index

• VBScript

  AddIndex "1", "Invoiceno", "123456" ' Document index (AFPDS)
  AddIndex "2", "Invoiceno", "123456" ' Page index (AFPDS, PDF)
  AddIndex "3", "Invoiceno", "123456" ' Metaforce Dynamo archive index
  AddIndex "4", "Invoiceno", "123456" ' Metaforce Dynamo data archive index

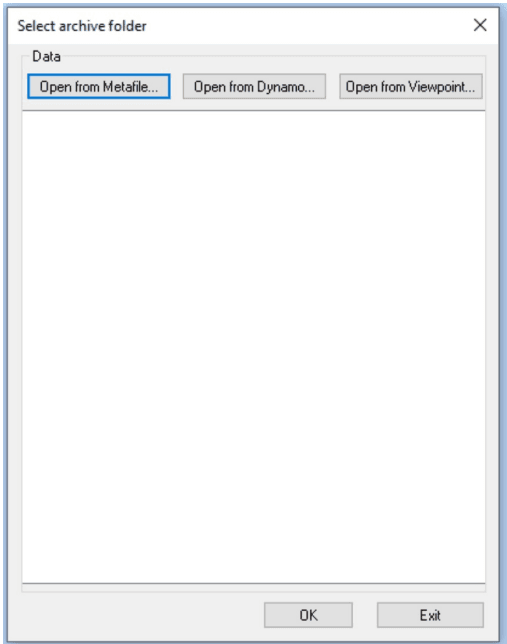

Archive index…

Archive index dialog makes it easier to create AddIndex by connecting to an archive database, Dynamo or Viewpoint1, or from an exported folders XML file.

It creates indextype 3, see above, for all existing fields in the selected Dynamo folder. Except for the JOBID, DOCID and XMLDATA which are ignored since they are protected fields and created by the MetaEngine during document creation.

EXAMPLES AFTER FIELD FETCH:

• JScript

  //Fields with default values or nullable:
  AddIndex("3","PRINTSTATUS",GetValue("PRINTSTATUS")); //DataType; long Nullable
  AddIndex("3","PRINTOUTJOBID",GetValue("PRINTOUTJOBID")); //DataType; long Nullable
  AddIndex("3","ARCHIVESTATUS",GetValue("ARCHIVESTATUS")); //DataType; long Nullable
  AddIndex("3","ARCHIVEOUTJOBID",GetValue("ARCHIVEOUTJOBID")); //DataType; long Nullable
  AddIndex("3","COMPLETEDATE",GetValue("COMPLETEDATE")); //DataType; long Nullable
  AddIndex("3","CUSTOMERNAME",GetValue("CUSTOMERNAME")); //DataType; str Length: 60
  Nullable
  AddIndex("3","CUSTOMERADR",GetValue("CUSTOMERADR")); //DataType; str Length: 60
  Nullable
  AddIndex("3","CUSTOMERZIPCODE",GetValue("CUSTOMERZIPCODE")); //DataType; str Length: 8
  Nullable
  AddIndex("3","CUSTOMERCITY",GetValue("CUSTOMERCITY")); //DataType; str Length: 60
  Nullable
  AddIndex("3","CUSTOMERNO",GetValue("CUSTOMERNO")); //DataType; str Length: 60 Nullable

• VBScript

  'Fields with default values or nullable:
  AddIndex "3","PRINTSTATUS",GetValue("PRINTSTATUS") 'DataType; long Nullable
  AddIndex "3","PRINTOUTJOBID",GetValue("PRINTOUTJOBID") 'DataType; long Nullable
  AddIndex "3","ARCHIVESTATUS",GetValue("ARCHIVESTATUS") 'DataType; long Nullable
  AddIndex "3","ARCHIVEOUTJOBID",GetValue("ARCHIVEOUTJOBID") 'DataType; long Nullable
  AddIndex "3","COMPLETEDATE",GetValue("COMPLETEDATE") 'DataType; long Nullable
  AddIndex "3","CUSTOMERNAME",GetValue("CUSTOMERNAME") 'DataType; str Length: 60 Nullable
  AddIndex "3","CUSTOMERADR",GetValue("CUSTOMERADR") 'DataType; str Length: 60 Nullable
  AddIndex "3","CUSTOMERZIPCODE",GetValue("CUSTOMERZIPCODE") 'DataType; str Length: 8
  Nullable
  AddIndex "3","CUSTOMERCITY",GetValue("CUSTOMERCITY") 'DataType; str Length: 60 Nullable
  AddIndex "3","CUSTOMERNO",GetValue("CUSTOMERNO") 'DataType; str Length: 60 Nullable

Using Archiveindex to set PDF properties

Use Addindex to set PDF properties Title, Author and Subject. PDF property can be any of the following types: “_DOCPROP_Title” sets property Title. “_DOCPROP_Author” set property Author. “_DOCPROP_Subject” set property Subject.

EXAMPLES:

• JScript

  AddIndex("3", "_DOCPROP_Title", "Document title");

• VBScript

  AddIndex "3", "_DOCPROP_Title", "Document title"

Error method

PrintError

PrintError(“ErrorType”, “ErrorText”)

Used to report a printout error to the error log during runtime. It can also stop processing of a batch job, or just abort a document. (For Batch documents)

EXAMPLES:

• JScript

  PrintError("ERROR", "A Severe error occurred. Stop!");
  PrintError("WARNING", "A Warning error occurred. Inform and continue.");
  PrintError("ABORTJOB", "Stop job!");
  PrintError("ABORTDOC", "Severe document error, but continue.");

• VBScript

  PrintError "ERROR", "A Severe error occurred. Stop!"
  PrintError "WARNING", "A Warning error occurred. Inform and continue."
  PrintError "ABORTJOB", "Stop job!"
  PrintError "ABORTDOC", "Severe document error, but continue."

Inserting document parts methods (found under Resources)

InsertDocument

InsertDocument(DocID)

Inserts a DocID of the document type in the document. An error occurs if the specified document DocID does not exist.

EXAMPLES:

• JScript

  var vValue=GetValue("RECTYPE");
  if (ExistsInMetaLogic("Document", vValue) ) // Insert the document if it exists
   InsertDocument(vValue);

• VBScript

  Dim vValue
  vValue=GetValue("RECTYPE");
  if ExistsInMetaLogic("Document", vValue) then ' Insert the document if it exists
   InsertDocument vValue
  end if

InsertGraphObject

InsertGraphObject(graphID)

Inserts a graphID of the business graphic type in the document. An error occurs if the specified graphic graphID does not exist.

EXAMPLES:

• JScript

  var vValue=GetValue("GRAPH");
  if (ExistsInMetaLogic("Graph", vValue) ) // Insert the graph if it exists
   InsertGraphObject(vValue);

• VBScript

  Dim vValue
  vValue=GetValue("GRAPH")
  if ExistsInMetaLogic("Document", vValue) then ' Insert the graph if it exists
   InsertGraphObject vValue
  end if

InsertImage

InsertImage(XmlString)

Inserts an image into the document. The image can be imported in the MetaLogic file or part of the data value. If the image is part of the data it must be in B64-encoded data stream.

The following attributes make up the XmlString:

The other attributes work the same as for other resource, see chapter Texts - Common properties for Barcode, Line, Rectangle, Textbox and Image.

EXAMPLES:

• JScript

  var vXmlStr="<?xml version='1.0' encoding='UTF-16?>";
  vXmlStr+="<Image X='25' Y='35' CX='40' CY='50' Height='50' OverlayName='' ";
  vXmlStr+="BodyFromAttr='The attribute name in data containing image data' ";
  vXmlStr+="Compression='30' Width='40' Mode='1' TakesPageHeight='N' Static='Y'/>";
  InsertImage(vXmlStr);
  var vXmlStr="<?xml version='1.0' encoding='UTF-16?>";
  vXmlStr+="<Image X='25' Y='35' OverlayName='MyLogo' ";
  vXmlStr+="Mode='1' TakesPageHeight='N' Static='Y'/>";
  InsertImage(vXmlStr);


• VBScript

  Dim vXmlStr
  vXmlStr = "<?xml version='1.0' encoding='UTF-16?>" & _
  "<Image X='25' Y='35' CX='40' CY='50' Height='50' OverlayName='' " & _
  "BodyFromAttr='The attribute name in data containing image data' " & _
  "Compression='30' Width='40' Mode='1' TakesPageHeight='N Static='Y'/>"
  InsertImage vXmlStr
  vXmlStr = "<?xml version='1.0' encoding='UTF-16?>" & _
  "<Image X='25' Y='35' CX='40' CY='50' " & _
  "Mode='1' TakesPageHeight='N' Static='Y'/>"
  InsertImage vXmlStr

InsertObject

InsertObject(ObjectID)

Inserts a form object type into the document. An error occurs if the specified form objectID does not exist.

EXAMPLES:

• JScript

  var vXmlStr="<?xml version='1.0' encoding='UTF-16?>";
  vXmlStr+="<Image X='25' Y='35' CX='40' CY='50' Height='50' OverlayName='' ";
  vXmlStr+="BodyFromAttr='The attribute name in data containing image data' ";
  vXmlStr+="Compression='30' Width='40' Mode='1' TakesPageHeight='N' Static='Y'/>";
  InsertImage(vXmlStr);
  var vXmlStr="<?xml version='1.0' encoding='UTF-16?>";
  vXmlStr+="<Image X='25' Y='35' OverlayName='MyLogo' ";
  vXmlStr+="Mode='1' TakesPageHeight='N' Static='Y'/>";
  InsertImage(vXmlStr);

• VBScript

  Dim vXmlStr
  vXmlStr = "<?xml version='1.0' encoding='UTF-16?>" & _
  "<Image X='25' Y='35' CX='40' CY='50' Height='50' OverlayName='' " & _
  "BodyFromAttr='The attribute name in data containing image data' " & _
  "Compression='30' Width='40' Mode='1' TakesPageHeight='N Static='Y'/>"
  InsertImage vXmlStr
  vXmlStr = "<?xml version='1.0' encoding='UTF-16?>" & _
  "<Image X='25' Y='35' CX='40' CY='50' " & _
  "Mode='1' TakesPageHeight='N' Static='Y'/>"
  InsertImage vXmlStr

InsertText

InsertText(TextID) Inserts a text fragment in the document. An error occurs if the specified text ObjectID does not exist.

EXAMPLES:

• JScript

  var vValue=GetValue("TEXT");
  if (ExistsInMetaLogic("Text", vValue) ) // Insert the text if it exists
   InsertText(vValue);

• VBScript

  Dim vValue
  vValue=GetValue("TEXT")
  if ExistsInMetaLogic("Text", vValue) then ' Insert the text if it exists
   InsertText vValue
  end if

Miscellaneous methods

ExistsInMetaLogic

ExistsInMetaLogic(Type, ObjectID).

Returns a boolean value (true=1, false=0) if ObjectID of the type Type present in the logicfile.

EXAMPLES:

• JScript

  if (ExistsInMetalogic("Form", "GIRO") ) // does formID exists?
   InsertObject("GIRO");
  if (ExistsInMetalogic("Text", "TXT199") ) // does textID exists?
   InsertText("TXT199");
  if (ExistsInMetalogic("Document", "SUBDOCUMENT") ) // does documentID exists?
   InsertDocument("SUBDOCUMENT");
  if (ExistsInMetalogic("Graph", "PIEGRAPH") ) // does graphID exists?
   InsertGraphObject("PIEGRAPH");

• VBScript

  if ExistsInMetalogic("Form", "GIRO") then ' does formID exists?
   InsertObject vValue
  end if
  if ExistsInMetalogic("Text", "TXT199") then ' does textID exists?
   InsertText "TXT199"
  end if
  if ExistsInMetalogic("Document", "SUBDOCUMENT") then ' does documentID exists?
   InsertDocument "SUBDOCUMENT"
  end if
  if ExistsInMetalogic("Graph", "PIEGRAPH") then ' does graphID exists?
   InsertGraphObject "PIEGRAPH"
  end if

GetPhrase

GetPhrase(PhraseID, Language)

Returns the phrase id´s string value for language. Both arguments must be given. A blank value is returned if either phrase id or language don´t exist in the MetaLogic file.

EXAMPLES:

• JScript

  var vPhrase = GetPhrase("Phrase001", "Eng");
  ReturnValue(vPhrase);

• VBScript

  Dim vPhrase
  vPhrase = GetPhrase("Phrase001", "Eng")
  ReturnValue vPhrase

SetPhraseLanguage

SetPhraseLanguage(CurrentLanguage, DefaultLanguage)

Sets current language for phrases. Both arguments must be given. If Current language is set to a nonexisting id, the Default language is used. GetPhrase method is affected by this method.

EXAMPLES:

• JScript

  var vLang = "Eng";
  var vDef = "Swe";
  SetPhraseLanguage(vLang, vDef);

• VBScript

  Dim vLang
  Dim vDef
  vLang = "Eng"
  vDef = "Swe"
  SetPhraseLanguage vLang, vDef

SetKeepOnMin

SetKeepOnMin(MinSize)

Sets the minimum percent value that must be written on the page body before causing break to a new page.

EXAMPLES:

• JScript

  SetKeepOnMin("80");

• VBScript

  SetKeepOnMin "80"

StoreText

StoreText(DXMLText, ID)

Is used to store texts in memory. The text must be in DXML format and after it has been loaded it can be inserted using the InsertText method.

EXAMPLES:

• JScript

  var Connect = "DSN=ODBCName;";
  var Rs1 = new ActiveXObject("ADODB.Recordset");
  Rs1.Open( Source, Connect );
  var vTextID;
  var vID;
  while (!Rs1.EOF)
  {
   vTextID = Rs1(0).value;
   vID="_T_" + vTextID ; //Concat ID to ensure it will be unique
   if (!IsTextStored(vID)) // check if it is already loaded
   {
   vValue= Rs1(1).value;
   if (vValue!=null)
   StoreText(vValue ,vID);
   }
   Rs1.MoveNext(); // move on to the next record
  }
  Rs1.Close();

• VBScript

  Dim Connect, Rs1, vTextID, vID
  Connect = "DSN=ODBCName;"
  Set Rs1 = CreateObject("ADODB.Recordset")
  Rs1.Open( source, connect)
  while not Rs1.EOF
   vTextID = Rs1(0).value
   vID="_T_" & vTextID ' Concat ID to ensure it will be unique
   if not IsTextStored(vID) then ' check if it is already loaded
   vValue = Rs1(1).value
   if vValue <> null then
   StoreText(vValue ,vID)
   end if
   end if
   Rs1.MoveNext ' move on to the next record
  wend

Batch application

In a MetaBatch flow application can be controlled with or without a file type script. A file type script control what happens after a document has been created but before it is written to a file(s).

Without file type script:

The following methods could be used in the normal MetaLogic processing in an execute script.

With file type script

When a file type script is used in a batch parameter file then all batch methods could be of interest or use.

When the document has been formatted but before it is written to a printout file, Metaforce batch then gives you the chance to select which file(s) the document should be written to. You can also decide if a separator page should be written, if the document should be splitted, and/or what name the file should have.

In the MetaBatch paramater file you have the possibililty to create one or more output file type ID’s. The file type is “selected” by creating a file type script in the MetaLogic file, and is then selected as file type script in the batch parameter, see the MetaBatch manual for more information.

The file type’s role is to select where your printout of the current document should be placed. Methods exist to query how many pages/sheets the current document have. You can also save the current document in memory for document that should be processed as a set. Therefore methods exists to query how many pages/sheets/documents that are saved. File types can be used to save printout files in different formats (AFP, PDF, PPML etc) or if they should be processed in different envelopes (C4, C5) etc.

Note that some method calls only sets “flags” to the printout command and therefore must be coded in “delayed mode”. The methods are PrintSeparatorPage, SetBaseFileName, and SplitDocument.

Printout to file happens when file type script returns a value, via the ReturnValue method, that matches a file type ID, of the current document directly or when you use SaveDoc and using the PrintSaved to select what file type ID or IDs.

After the final document has been created, and if any saved documents exists in memory, a final call to the file type script is made. This makes it possible to decide where the saved documents should be placed.

Batch methods

Methods that can be used in MetaBatch applications.

AddDocument

AddDocument(Document, FirstLast)

Adds a document in the saved area, either at the top (first) or at the bottom (last). It is used together with SaveDoc() method.

EXAMPLES:

• JScript

  if (gPrevious!=gCurrent) // previous customer number not equal to current
  {
   AddDocument("STARTSEP", "First");
   AddDocument("END_SEP", "Last");
  }

• VBScript

  if gPrevious<>gCurrent then ' previous customer number not equal to current
   AddDocument "STARTSEP", "First"
   AddDocument "END_SEP", "Last"
  end if

GetCounter

GetCounter(Type)

Returns a number of type along with a counter of the type described below.

Type of counter.

Current document

• DocCount, returns number of documents created.
• SheetCount, returns number of sheets created.

Crashnumber

• JobCount, returns number of pages created.

Saved document

• SavedDocs, returns number of saved documents, used in file type script that uses SaveDoc().
• SavedSheets, returns number of sheets for saved documents.
• SavedPages, returns number of pages for saved documents.

Type can be a constant value, return value from function or variable.

EXAMPLES:

• JScript

  var vDocs = GetCounter("DocCount");
  var vSheets = GetCounter("SheetCount");
  var vJob = GetCounter("JobCount");
  var vSaveDocs = GetCounter("SavedDocs");
  var vSavedSheets = GetCounter("SavedSheets");
  var vSavedPages = GetCounter("SavedPages");
  if (vSaveDocs>0 ) // Send any remaining document to the print file
   PrintSaved(gCurrent); // current active filetype ID

• VBScript

  Dim vDocs, vSheets, vJob, vSaveDocs, vSavedSheets, vSavedPages
  vDocs = GetCounter("DocCount")
  vSheets = GetCounter("SheetCount")
  vJob = GetCounter("JobCount")
  vSaveDocs = GetCounter("SavedDocs")
  vSavedSheets = GetCounter("SavedSheets")
  vSavedPages = GetCounter("SavedPages")
  if vSaveDocs>0 then ' Send any remaining document to the print file
   PrintSaved gCurrent ' current active filetype ID
  end if

PrintSaved

PrintSaved(FileType)

Prints the saved document from memory, saved in memory by SaveDoc(), to a file of the file type which is set up in MetaBatch. If the parameter is omitted the first defined file type in MetaBatch is selected.

EXAMPLES:

• JScript

  var vCurrSheets=GetCounter("SheetCount");
  var vSavedSheets=GetCounter("SavedSheets");
  if (vCurrSheets==0) // We are at the last iteration...
  {
   if (vSavedSheets>0) // Print any remaining saved documents...
   {
   PrintSaved(gPrevPrtFile); // gPrevPrtFile, global variable defined under GLOBAL
   }
   ReturnValue(gPrevPrtFile);
   return;
  }

• VBScript

  Dim vCurrSheets, vSavedSheets
  vCurrSheets=GetCounter("SheetCount")
  vSavedSheets=GetCounter("SavedSheets")
  if vCurrSheets=0 then ' We are at the last iteration...
   if vSavedSheets>0 then ' Print any remaining saved documents...
   PrintSaved gPrevPrtFile ' gPrevPrtFile, global variable defined under GLOBAL
   end if
   ReturnValue gPrevPrtFile
   exit sub
  end if

PrintSeparatorPage

PrintSeparatorPage()

Writes a separator page. Used in MetaBatch applications, it causes a stop in a insetting machine. Which separator page is used is specified in the batch parameter file.

EXAMPLES:

• JScript

  PrintSeparatorPage();

• VBScript

  PrintSeparatorPage

ReRunDocument

ReRunDocument()

Is used to create a new document using the same data as the previous. This means that the running document is called again from the start using the same data. The running document must keep track of each call that has been made by using a counter.

ReRunDocument can be called maximum twenty times by default to avoid loops. This maximum can be changed in the MaxRerun input field, in the batch parameter. For more information see the MetaBatch Manual.

EXAMPLES:

• JScript

  var vCnt = GetValue("LOC_Counter");
  if (vCnt == "") // initialize first time
   g_Counter=0;
  if (g_Counter<1)
  {
   InsertDocument("DOC1");
   g_Counter=1;
   ReRunDocument(); // Start again using the same data
  }
  else
  {
   InsertDocument("DOC2");
   g_Counter=0; // Important to reset global variable to avoid loops!
  }
  SetValue("LOC_Counter",g_Counter);

• VBScript

  Dim vCnt
  vCnt = GetValue("LOC_Counter")
  if vCnt = "" then g_Counter=0 ' initialize first time
  if g_Counter<1 then
   InsertDocument "DOC1"
   g_Counter=1
   ReRunDocument ' Start again using the same data
  else
   InsertDocument "DOC2"
   g_Counter=0 ' Important to reset global variable to avoid loops!
  end if
  SetValue "LOC_Counter", g_Counter

ReturnValue

ReturnValue(“Value”)

Print out the current document to a print file(s) file type ID. Same parameters as for PrintSaved method, for more information see PrintSaved.

EXAMPLES:

• JScript

  var vCurrSheets=GetCounter("SheetCount");
  if (vCurrSheets<10) // a small document, use C5 letters
   ReturnValue("C5");
  else
   ReturnValue("C4");

• VBScript

  Dim vCurrSheets
  vCurrSheets=GetCounter("SheetCount")
  if vCurrSheets<10 then ' a small document, use C5 letters
   ReturnValue "C5"
  else
   ReturnValue "C4"
  end if

SameEnvelope

Prints the generated document to the same envelope, default is to print to a new envelope for each generated document. Is used in MetaBatch application in a file type script, see MetaBatch Manual for more information. It must be executed before ReturnValue method. See also ReturnValue() method.

EXAMPLES:

• JScript

  var vCurrent=GetValue("ControlID");
  if (vCurrent==gCurrent) // Shall be put in same "basket"
   SameEnvelope();
  ReturnValue("C4");

• VBScript

  Dim vCurrent
  vCurrent=GetValue("ControlID");
  if vCurrent=gCurrent then ' Shall be put in same "basket"
   SameEnvelope
  end if
  ReturnValue "C4"

SaveDoc

SaveDoc()

Saves the created document in memory. Is used in the MetaBatch application in a file type script, see MetaBatch Manual for more information. See also PrintSaved() method.

EXAMPLES:

• JScript

  var vCurrent=GetValue("ControlID");
  if (vCurrent==gCurrent) // Shall be put in same "basket"
   SaveDoc();
  else
   PrintSaved("C4");

• VBScript

  Dim vCurrent
  if (vCurrent==gCurrent) // Shall be put in same "basket"
   SaveDoc
  else
   PrintSaved "C4"end if

SetBaseFileName

SetBaseFileName(BaseName)

EXAMPLES:

• JScript

  var vValue=GetValue("Meta_CurrentInFileName");
  SetBaseFileName(vValue);

• VBScript

  Dim vValue
  vValue=GetValue("Meta_CurrentInFileName")
  SetBaseFileName vValue

SkipDocument

SkipDocument()

Skips printing of the current document. Instead it continues with the next. This method can be used in a file type script or in an execution script. Note: If used with ReRunDocument it can cause unexpected results.

EXAMPLES:

• JScript

  SkipDocument();

• VBScript

  SkipDocument

SplitDocument

SplitDocument(“FirstEnv”, “NextEnv”)

Splits a document in several envelopes after a specified number of pages. An address document must be selected in the MetaBatch parameter. For more information see the MetaBatch Manual. SplitDocument can be used in a file type script or in an execution script.

EXAMPLES:

• JScript

  SplitDocument("35", "40");

• VBScript

  SplitDocument "35", "40"

Functions

A function is a piece of script code, which executes a required operation. Functions can be called from scripts or other functions. A function can have input parameters and return values. A good candidate for a function is a piece of script code occurring twice or several times in the script code. Apart from the differences below, functions work out in the same way as scripts, see chapter Scripts.

Own functions can be opened by double-clicking on the function in a script-/function editor. User written functions are given their own color which can be changed to a color of your own choice, see Preferences.

To add a function you select Edit/Functions… See chapter Generic list dialog.

To return a value from the function you enter in the end of the script code

EXAMPLES:

• JScript

  result = "OK";
  return result;

To return a value back from a VBScript function the value must be assigned to the name of the function, see below for an example.

• VBScript

  result = "OK"
  functionname = result

Function global variable declaration (For Batch documents)

When field ‘Variable declaration’ is checked the script code will be used as an global variable declaration instead of a ordinary function. All variables declared in code marked as ‘Variable declaration’ can be reached from both functions and scripts. This can be useful when you need script counters or want to create an global instance of ActiveX/COM components.

When creating multiple variable declaration objects, either by creating multiple variable declaration objects in same MetaLogic file or project, or from the inheritance mechanism found in Solutions and thereby getting different variable declarations from all active in MetaLogic file or project. These will be merged at runtime into one global variable declaration. This can cause compilation errors if multiple declaration for the same variable exists. Care must be taken to avoid this if multiple variable declaration definition objects are used.

All functionality are the same as in the Function dialog.
